3D IP67 DC24V protected UV resistant Silicone Flexible Neon Strip CRI90
Description:
- LEDLINE EVIS WHT, DC24V.Cross section size 16mm x 15mm/ 0.63" x 0.59" (W x H), Vertical
bending & Horizontal bending both are available with radius of 100mm / 3.93".
- IP67 protected, UV resistant, chemical resistant and DIY connectors for indoor & outdoor solutions. Very easy to cut &
reconnect on site.
- 2-Step MacAdam bin and dot free lighting guarantee the most excellent performance over the rated lifetime.
Specifications:
| Model | LEDLINE EVIS WHT |
| SMD Type | Lumileds 2835/Sanan 2835 |
| LEDs/m | 120LEDs/m |
| LED Power | 10W/M |
| LED Color | 2700K/3000K/3500K/4000K/5000K |
| Input Voltage | DC24V |
| Ra | >93 |
| Neon Dimension | 16mm*15mm |
| Unit cut | 50mm |
| IP Grade | IP67 |
| Storage Temperature | -25℃ /-13℉min, 60℃ /140℉max |
| Life Span | >54000H |
| Package length | ≤ 30m |
| Beam Angle | 120° |
| Bending | 3D Bending (Vertical bending & Horizontal) |
Download Datasheet: EVIS.pdf
Notices:
- The product is not available for cutting.
- When ambient temperature reaches 55℃ , the power is suggested to be 5W/M.
- Max. run length refers to single side feed in serial connection.
- The given data are typical values due to the tolerances of the production process and the electrical components, values for light output and electrical power can vary up to 10%.
- The given color temperature is the temperature of finished product.
Applications:
Court lighting, signature lighting, Urban lighting.
Hotel, showing room, corridors, apartment, plaza, shopping mall.
Landscape lighting, garden lighting, luminaries solutions can be all in.
FAQ:
Q1. Why use Silicone material?
A:
1.UV resistant, will not yellow in time.
2.Highly flexible, stable and
durable; soft to bend, fast recovery after bending.
3.For the installation environment, it can endure in -25℃ to 60℃ temperature.
4.Non sticky, easy-to-clean, no smell and no chemical reaction with detergent.
5.Premium look and feel.
Q2. Is it possible to visit the factory?
A: Of course, we welcome customers to experience our production equipment and standard production environment
Q3.Where is your factory located?
A: Our factory is located in Baoan District,Shenzhen, Guangdong Province, China.
Q4. What are your main products?
A: Our company dedicated in LED Strips for more than 10 years. Our main products are led strip, cob(CHIP ON BOARD) strip, neon flex and rigid bar.
Q5. What are your payment terms?
A:100% Payment before production
|
|

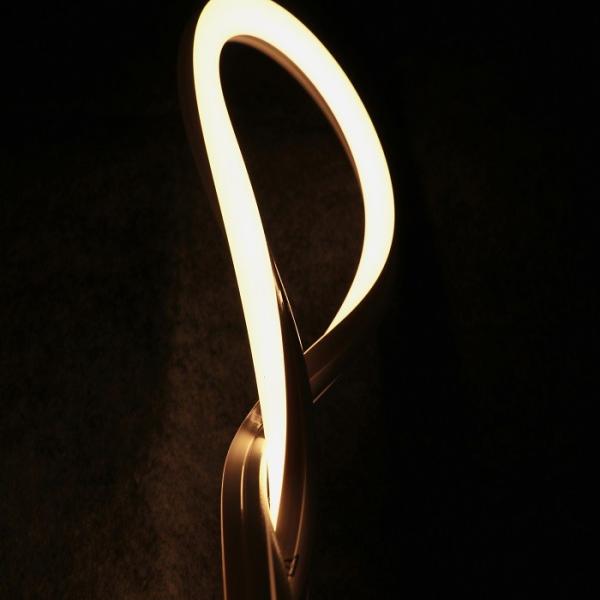

3D Silicone Flexible Neon Strip CRI90 IP67 Waterproof DC24V Protected UV Resistant Images
|
